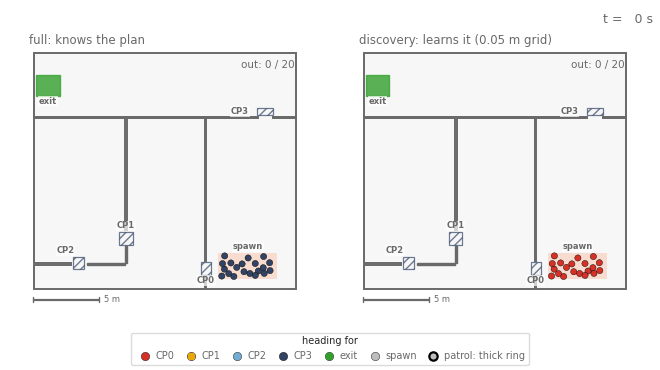

Familiarity: full map vs discovered map

Left: full. Right: discovery, 0.05 m sight grid. Colour: the node the agent is heading for (full: CP3 until it passes the door, then the exit; discovery: its current route target).

What is tested

Whether familiarity changes what an agent knows, and only that. The two decks share plan, signs, agents and seed; only the spawn group’s familiarity differs. A full agent must know the whole map and take the shortest route. A discovery agent must start with only what it can see and learn a node only when its sign comes into sight. This catches a familiarity flag that is ignored, a map seeded with nodes the agent cannot see, a node learnt through a wall, and an exploration that does not follow the frontier rule.

Equation

Familiarity is \(p = 1\) (full) or \(p = 0\) (discovery) (Models › Wayfinding §2).

• Full. The agent knows the whole stage graph from t = 0 and takes the shortest path to the exit.
• Discovery. At t = 0 the agent knows its spawn node and each neighbour whose sign is legible from where it stands. Later it learns a neighbour of its current node when that node’s sign becomes legible: on arrival at a node, and at each re-evaluation (every 1 s).
• Exploration. With no exit known, it heads for the nearest known node it has not visited (walking distance). With none left, it looks from its current node’s point and then, if that teaches it nothing, patrols the nodes it knows (wander; Models › Wayfinding §2.4).

Legibility. pyFDS-Evac hands the signs to fdsvismap, the implementation of the waypoint method of Börger, Belt and Arnold (2024, doi:10.1016/j.firesaf.2024.104269). In clear air its rule reads: a sign at \(s\) facing the compass bearing \(\alpha\), with \(\hat n = (\sin\alpha, \cos\alpha)\), is legible from \(p\) when the sight line \(p\)–\(s\) stays in the walkable area and

The view-angle factor is \(\hat n\cdot(p-s)/|p-s|\). fdsvismap caps the reading distance at \(V_{\max}\) before it multiplies by that factor, so the legible region is a disc of diameter 30 m in front of the sign. Capping after the factor would give a half-disc of radius 30 m; on this plan both orders give the same predictions (the script checks both). \(V_{\max}\) is the default of --max-sign-distance, a reading limit, not a measured distance. A sign without a bearing (here the exit’s) needs only \(|p - s| \le V_{\max}\).

Stage graph. With no transitions in the deck, the graph is wired automatically. With \(d\) the shortest walkable path between node centres, the edge \(u \to v\) from a spawn area or checkpoint to a checkpoint or exit is dropped when some other checkpoint \(m\) lies on the way:

If every edge of \(u\) is dropped, the nearest target is kept.

Reference time. A path of length L walked at the desired speed takes \(t_{\text{ref}} = L / v_0\), with \(v_0\) = 1.3 m/s. It is not a bound: agents pushed by neighbours walk faster than \(v_0\).

Setup

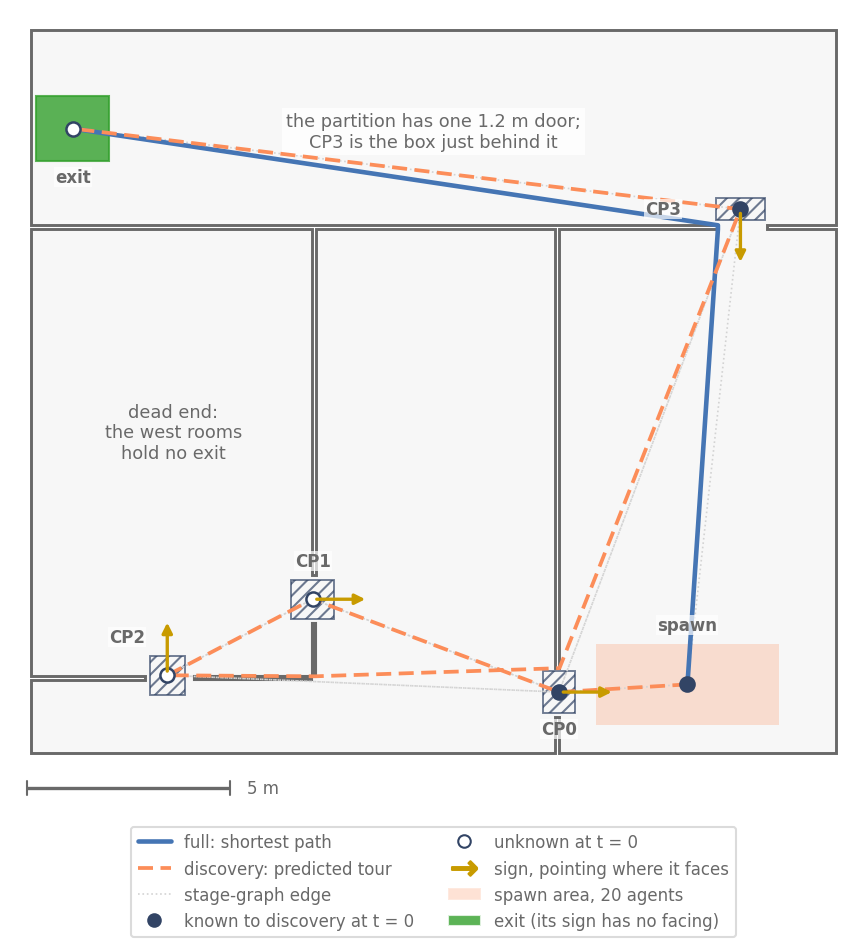

• Plan: 20 × 18 m, 0.1 m walls, 1.2 m doors. The partition (y = 13.0–13.1 m) has one door (x = 17.0–18.2 m); CP3 is the box just north of it (y = 13.22–13.77 m). The exit is in the north-west corner. The west rooms (CP1, CP2) hold no exit.
• Signs: CP0 and CP1 face east, CP2 north, CP3 south; the exit’s sign is synthesised at its centre, without a bearing.
• Agents: 20, all at t = 0 in the spawn room; Social Force model, \(v_0\) = 1.3 m/s, radius 0.2 m, seed 420; rerouting on, re-evaluation every 1 s.
• Runs: clear air (no --fds-dir). full once. discovery on sight grids of 0.25, 0.1, 0.05 and 0.025 m; 0.05 m, two cells across a wall, is the reference. Each run records every change of every agent’s map.

Expected

All from the plan, computed by the figure script with its own visibility-graph shortest paths, the legibility rule and the wiring rule.

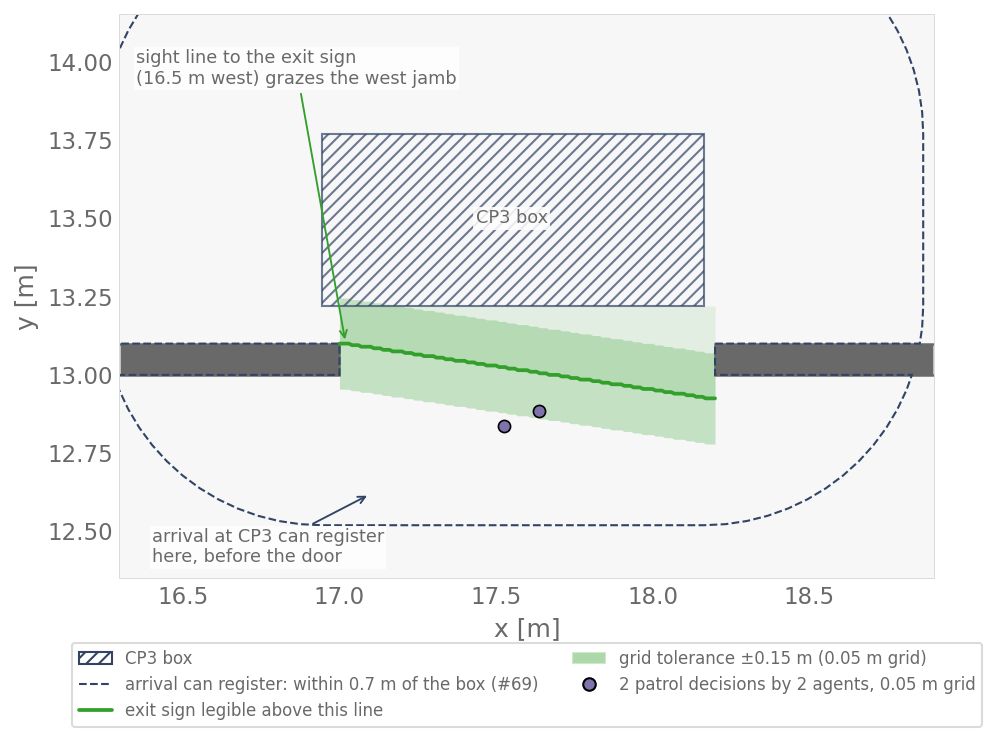

The last row matters. Arrival at a checkpoint registers when the agent’s centre is inside its box, or within r + 0.5 m (0.7 m here, r = 0.2 m) of a random target point in the box (#69). The target is drawn at least 0.8 r = 0.16 m inside the box, so arrival at CP3 can register from y = 12.68 m, still south of the door and of the sign line. There the exit sign is behind the jamb, and arriving teaches nothing. If the agent has stepped past the jamb by its next re-evaluation, it sees the exit and leaves. If not, it has no frontier left. Before it patrols, it walks until CP3’s node point lies within its body radius, senses from there and decides again (Models › Wayfinding §2.4). The criteria test that each decision matches what the agent could see.

Result

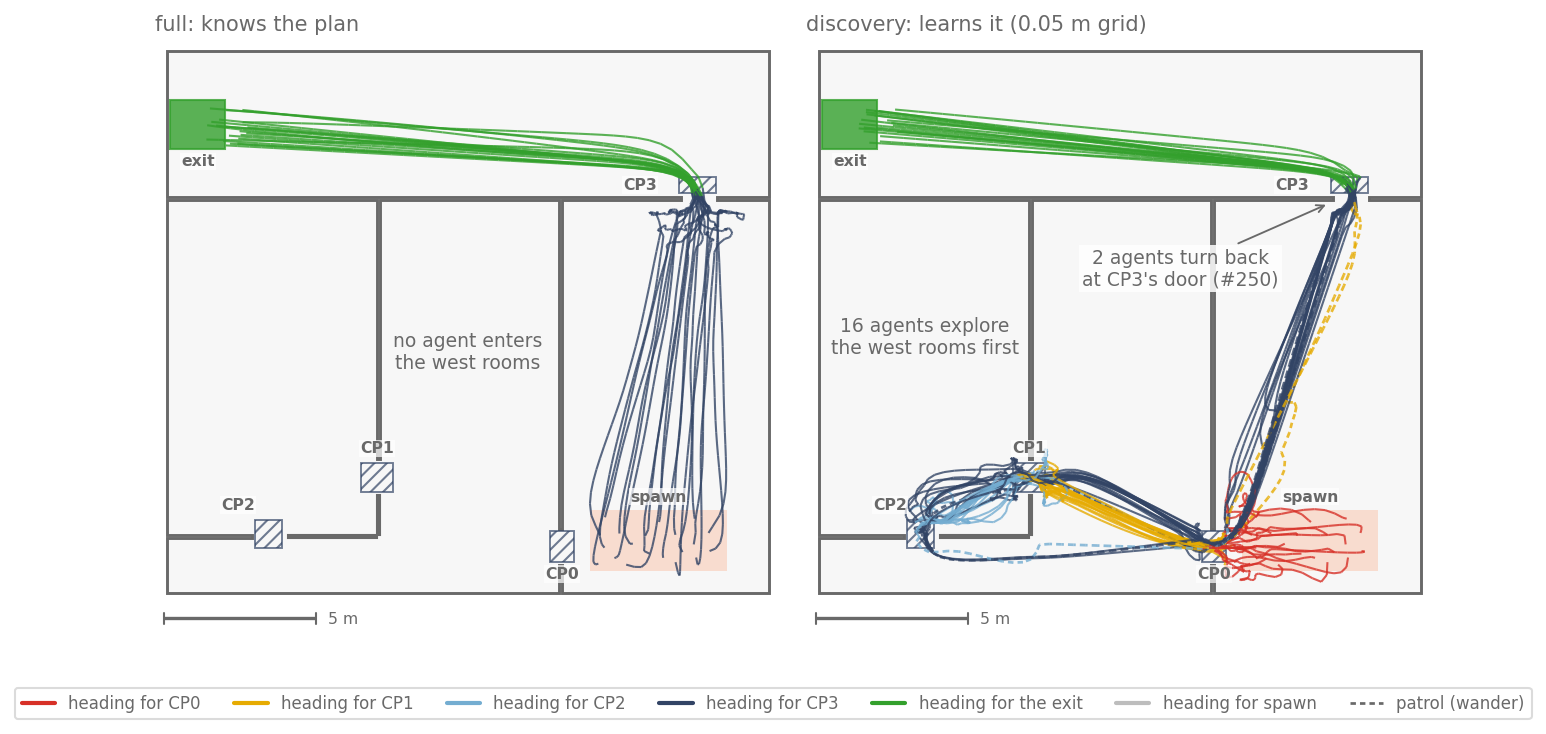

Full agents never enter the west rooms. All 20 discovery agents explore them first. 15 follow the predicted tour and leave. Agent 11 turns from CP1 to CP3 without visiting CP2: CP2’s sign was not in sight where it stood at CP1, the case criterion 4 allows. Agents 5, 6, 7 and 13 stop in CP1’s door at about 40 s and stand there to the end of the run, the doorway deadlock of #359: the tours of three end there, and one had followed the predicted tour so far. No agent turns back at CP3’s door.

On other grids:

At 0.05 m, agents 5, 6, 7 and 13 stop in CP1’s door at 40–41 s, heading in opposite directions, and stand there to the end of the run: the doorway deadlock of #359. Over seeds 1–30 (the runs of criterion 6), a doorway deadlock ends 12 of 120 runs: 3 at 0.25 m (seeds 7, 29, 30), 2 at 0.1 m (seeds 3, 12), 4 at 0.05 m (seeds 3, 12, 13, 14) and 3 at 0.025 m (seeds 12, 14, 27). Before #726 it ended 4 of 120 (0.25 m seeds 3 and 7, 0.1 m seeds 20 and 28), and seed 420 deadlocked at 0.1 m instead of 0.05 m. A bisection over the same runs (#359) puts the change at #726, which counts a checkpoint as reached once the agent is inside its box: its parent a9def615 reproduces the earlier numbers of this page exactly, and #726 itself gives those of c619a046. The deadlock moves between grids and seeds; it does not follow the grid. On the other grids all agents are out by 76.3–82.4 s, and no agent turns back at CP3. At 0.25 m no cell centre falls inside the walls, so the sight grid sees through them: agents learn CP2 from the next room and the exit from south of the partition.

Pass criteria

Grid tolerance. The sight grid moves the edge of the legible region. From the code of VisibilityModel.clear_air and fdsvismap 0.3.2, each of four errors shifts a sight line sideways by at most:

Their sum is \(T = c(\sqrt2 + 3/2) \approx 2.9\,c\): 0.15 m at c = 0.05 m. This is a first-order estimate for this plan, not a general bound: a shift at the sign reaches the agent scaled by (agent to wall) / (sign to wall), which is small here (the jamb of CP3’s door is within 1 m of the agents, the exit sign 16.5 m away). At 0.1 m, T = 0.29 m, about three wall thicknesses, so a pass there is weaker evidence than at 0.05 m. A decision within T of the edge cannot be judged on this grid. So a node counts as hidden only if its sign is illegible from every point within T of the agent, and as in sight only if it is legible from every such point. The script samples that disc at its centre and at 48 points on three rings.

Precondition. The grid resolves the walls: at least one cell centre lies inside each 0.1 m wall. At 0.25 m it does not, and the criteria below are not evaluated; there, with no tolerance, 37 learnt nodes had their sign hidden in exact geometry (12 of them CP2, learnt from the next room).

1. Full. Every full agent knows all 6 nodes and the 11 wired edges at t = 0 and learns nothing later; every trajectory enters CP3’s box and none of CP0–CP2’s; no route changes. Counts, no tolerance.
2. Discovery start. Every discovery agent’s map at t = 0 is exactly {S, CP0, CP3}, and its first target is CP0. Counts.
3. Learning. Every node added to a map after t = 0 is the head of a wired edge from a node already known, and its sign is not hidden from the agent’s position at that time. The rule asks for a neighbour of the agent’s current node; the check accepts any known node, so it is a necessary condition only.
4. Tour. Each agent explores CP0 → CP1 → CP2 → CP3, or skips CP2 only where CP2’s sign was not in sight when it chose CP3.
5. No patrol in sight of the exit. No wander decision is taken where the exit sign is in sight. This checks that a patrol is consistent with what the agent could see. Here it holds trivially: no agent starts a patrol on any grid.

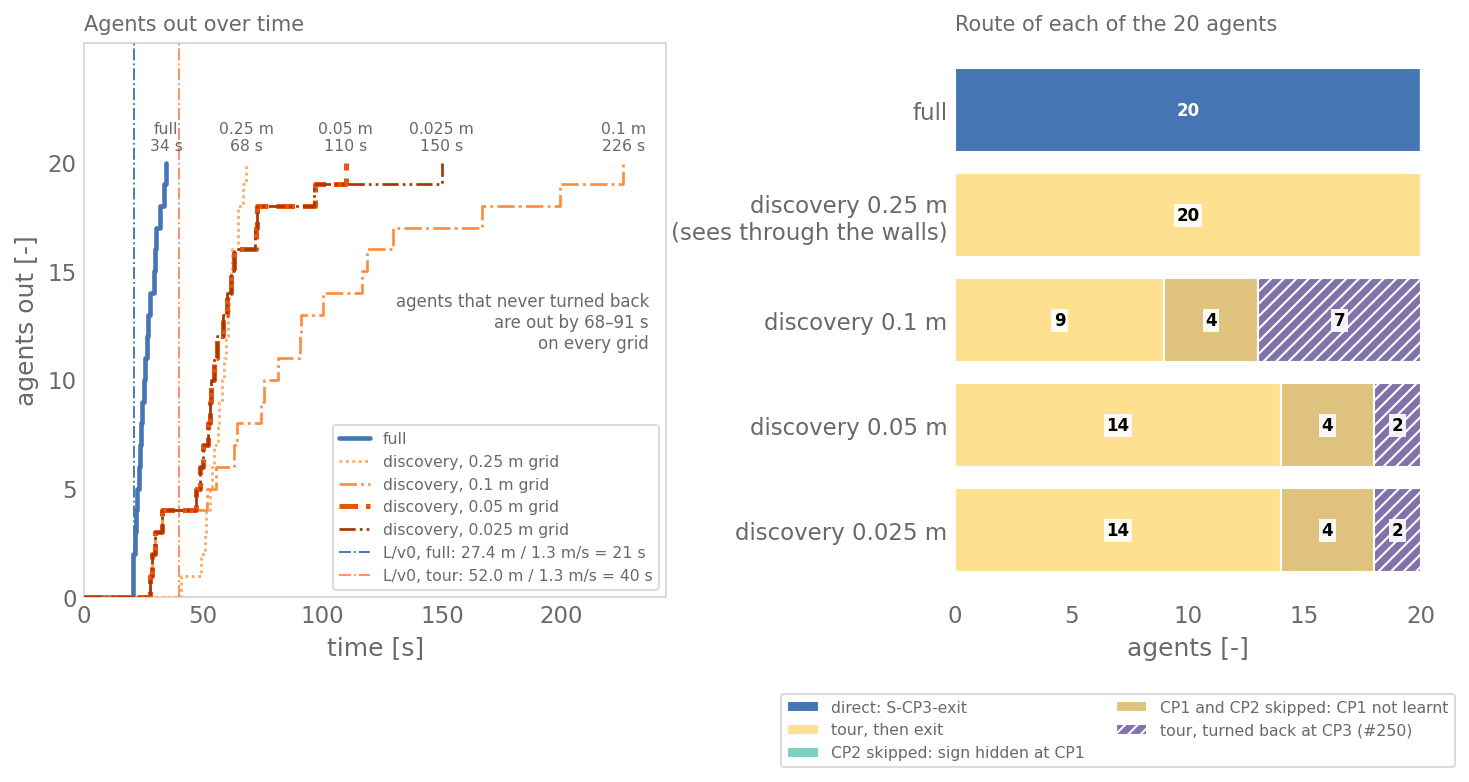

6. Grid convergence of the discovery egress time. Seeds 1–30, the last agent out of each run, a run that does not finish counted as 300 s. At each halving of the sight grid, 0.1 → 0.05 m and 0.05 → 0.025 m, the median and the 90th percentile (P90) over the 30 seeds change by less than 5 %. The rule was fixed before the runs (#168). Unlike the tables above, which read the last trajectory frame, it uses the simulation clock at the end of the run.
   • 0.1 → 0.05 m: median 74.6 → 74.7 s (+0.1 %), P90 85.4 → 300 s (+251 %): fails. Four runs at 0.05 m (seeds 3, 12, 13, 14) and two at 0.1 m (seeds 3, 12) do not finish; all are doorway deadlocks (#359) and count as 300 s.
   • 0.05 → 0.025 m: median 74.7 → 75.5 s (+1.1 %), P90 300 → 104.3 s (−65 %): fails, for the same reason; three runs at 0.025 m (seeds 12, 14, 27) do not finish.
   • Without the runs that do not finish, both halvings pass: P90 −3.0 % (bootstrap 90 % interval −9.7 to +1.2 %) from 0.1 to 0.05 m, and +1.1 % (−1.8 to +4.2 %) from 0.05 to 0.025 m. The failure is the deadlock, not the grid.

On every fine grid one agent skips CP2 where its sign was not in sight, which criterion 4 allows. At 0.05 m the tours of 3 of the 4 deadlocked agents end in CP1’s door, so they are not the predicted tour; the cause is the deadlock, not the map. On the 0.025 m grid, the next finer one, criteria 1–5 all pass for seed 420, which also points to the deadlock rather than the grid.

For seed 420, the run shown on this page, the clock gives 300 s at 0.05 m (4 agents deadlocked) and 78.85 s at 0.025 m. #168 stays open: it is rerun with the same rule once the #359 deadlock is fixed.

With no tolerance (T = 0), the results show how close to the edge some decisions fall. Criterion 3 flags 7 learnt nodes at 0.1 m, 5 at 0.05 m and none at 0.025 m. Criterion 5 flags no patrol. Criterion 4 is unchanged. Each flag lies inside T of the edge of the legible region (CP1’s and CP2’s signs near the west doors): there the grid decides, and exact geometry cannot overrule it.

Run it yourself

No FDS is needed. scripts/verification/familiarity_run.py takes the same arguments as run.py and also writes each agent’s map history. Run each deck in its own process:

R=scripts/verification/familiarity_run.py
uv run python $R --scenario assets/familiarity_test_full --seed 420 \
  --output-route-history <out>/full/routes.csv \
  --output-sqlite <out>/full/run.sqlite \
  --output-cognitive-map <out>/full/cognitive_map.csv --cleanup
for c in 0.25 0.1 0.05 0.025; do
  d=<out>/discovery_cell$c
  uv run python $R --scenario assets/familiarity_test_discovery --seed 420 \
    --vis-cell-size $c --output-route-history $d/routes.csv \
    --output-sqlite $d/run.sqlite --output-cognitive-map $d/cognitive_map.csv \
    --cleanup
done
uv run python scripts/verification/familiarity_figures.py --data <out>

Each run takes seconds. The script prints every number on this page except those of criterion 6. The numbers here come from these commands at commit c619a046 (Python 3.13.4, macOS arm64).

Criterion 6 runs the discovery deck for seeds 1–30 and 420 on each grid, with the deck’s no_known_exit and with default_route, one grid and mode per process:

S=scripts/verification
for c in 0.25 0.1 0.05 0.025; do for m in explore default_route; do
  PYTHONHASHSEED=0 uv run python $S/familiarity_grid_study.py \
    --cell $c --mode $m --out <out>/results.jsonl $(seq 1 30) 420 &
done; done; wait
uv run python $S/familiarity_grid_analysis.py <out>/results.jsonl

Each of the 248 runs takes seconds. The analysis prints the medians, P90s, changes, bootstrap intervals and verdicts quoted in criterion 6. The numbers are from commit c619a046. Under default_route the agents learn nothing after t = 0 on this deck, so the time (median 35.3 s, P90 36.2 s) is the same on every grid; that arm is not a convergence test.

Reruns on the same machine reproduce these numbers to the last digit. Across platforms they need not (Limitations › Reproducibility); the tests on generated worlds (tests/test_generated_worlds.py) therefore assert invariants, not trajectories.

scripts/animate_cognitive_map.py turns the map history of one agent into a movie.

Limits

• The discovery egress time is not shown to converge in the grid (#168). Criterion 6 fails on both halvings on this 30-seed sample, because of doorway deadlocks (#359) on every grid, and passes on both when the deadlocked runs are left out. #168 stays open, is blocked on the #359 fix and is then rerun with the same rule. Do not quote a discovery egress time without its grid, and on this deck use 0.05 m or finer.
• The look is not logged. The look from CP3’s node point writes no route-history row, so the outputs this page checks cannot show where an agent looked. The page checks its effect (no patrol, no turn-back), not the look itself.
• Grid. run.py uses a 0.25 m sight grid by default. On this deck it sees through every wall, and the run logs a warning that the cell is not smaller than the thinnest wall (#115). Pass --vis-cell-size 0.05 for the discovery deck.
• No reference for the egress times. The full run’s last agent is out at 34.8 s. Its door passes 1.32 persons/s (1.10 persons/(s·m) of the 1.2 m door), measured where the agents cross the door’s mid-line. No hand-calculated door flow is compared here.
• One exit, clear air. Choosing between several known exits, and learning through smoke, are not tested here. For the bearing of a sign see tests/test_exit_visibility_alpha.py; smoke-limited learning has no test yet (#22). The paired FDS deck has slices at 2.0 and 1.0 m only, not at the 1.6 m sampling height; it would need them before a smoke variant is run.
• Route choice is not perception-limited. Among the exits it knows, a discovery agent prices smoke over legs it has never seen (#125). In clear air this changes nothing here.
• Labels. routes.csv records an agent’s first exit as initial. A later change of exit is labelled by its cause; in clear air that is learned_exit or shorter_path, not smoke_reroute (#92).
• Not yet an automated test. The checks run in the figure script on the stored output. scripts/golden_rerouting.py records these runs, the grid sweep included, as golden output, and tests/test_rerouting_golden.py pins route decisions on these decks under synthetic smoke; both are regression checks, not verification.
• History. Before #99 the deck had a scripted tour, hand-added shortcut edges and a second exit. The talk’s 35.1 s and 75.1 s, quoted on Models › Wayfinding, come from that version and are not comparable.
