Verif.4.1: Dynamic availability of exits

1. Definition

A room of 10 m by 15 m has two 1 m wide exits on the 15 m walls, equidistant from the bottom wall. One occupant without pre-evacuation time, walking at 1 m/s, stands in the room. Exit 1 becomes unavailable after 1 s of simulation time. The usage of both exits is checked. The test checks that the model can change the availability of routes over time, for example a door closed by smoke or heat.

Source: NIST TN 1822, Verif.4.1, pp. 35-36, Fig. 11. This is a paraphrase, not the text of the standard.

Reference: Ronchi, E., Kuligowski, E. D., Reneke, P. A., Peacock, R. D., Nilsson, D. (2013). The Process of Verification and Validation of Building Fire Evacuation Models. NIST Technical Note 1822. National Institute of Standards and Technology. 10.6028/NIST.TN.1822 (Page numbers are the printed page numbers of TN 1822.)

2. Scenario

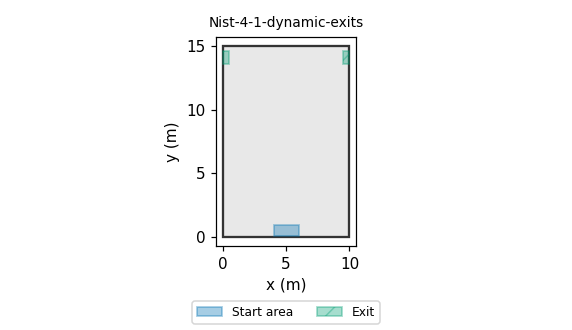

Rendered from the scenario files of this repository (top view).

3. What to expect

The occupant does not use Exit 1. A model that cannot simulate dynamic exit availability should document that limitation.

Our criterion: Agents reroute when an exit closes at runtime

Not run (pytest marker run=False). The public API cannot make an exit unavailable at runtime (jupedsim-scenarios 0.7.3, the locked version, removes exits only before a run and has no runtime exit closure); the test forces the reroute through private runner state and is not run.

4. Our result

Status: PENDING

No measured values: this test is not covered yet.

5. Our implementation

Deviations from the standard:

• Not run. The public interface of jupedsim-scenarios 0.7.3 cannot make an exit unavailable during a run: it removes exits only before a run. The test code writes the private agent state of the runner to send the occupant to Exit 2 at 1 s, so it would test the redirect that the test itself makes and not a response of the model to a closed exit.
• The scenario file holds the room, both exits and one occupant with 50/50 journey weights. No time-dependent exit state is part of it.

Model: not available in this run

• Test: TestNist41DynamicExitAvailability (source link not available in this run)
• Scenario file: Nist-4-1-dynamic-exits.zip

6. Our notebook

No notebook for this test yet.
